1.Pre-dispersing homogenized system꞉ It's a jacketed stainless steel high shear reactor,with low speed mixer and high shearing machine on it. Normally the mixer speed is 50rpm, shearing speed is 0~1450rpm.

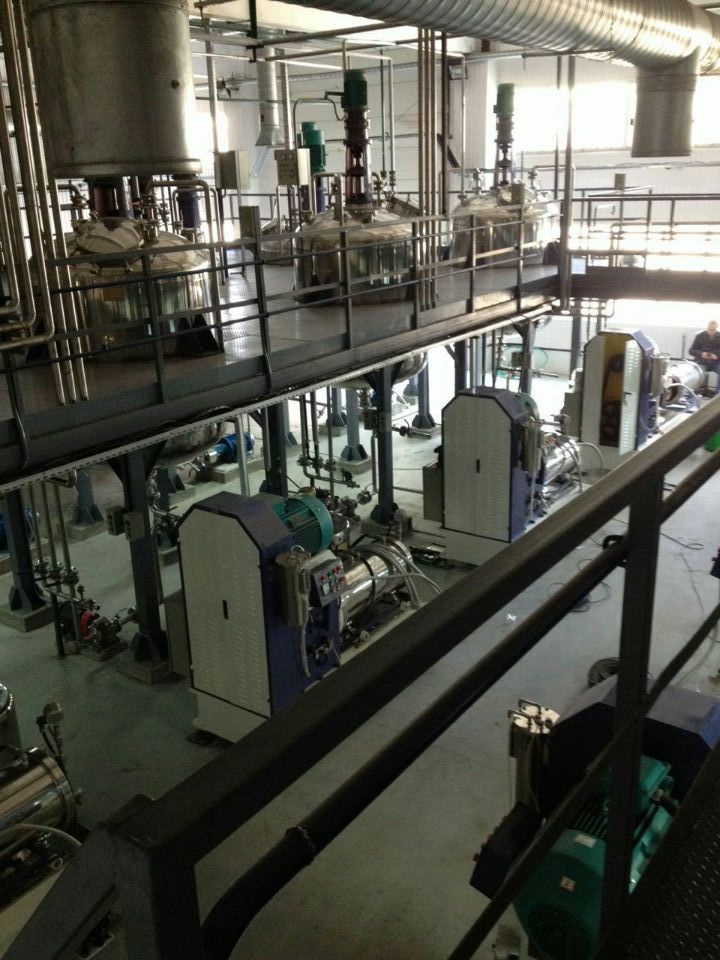

2.Milling system꞉ Filter+primary coarse sand mill+transfer tank+secondary coarse sand mill+transfer tank+finished fine sand mill(according to the product, disc type and pin types and mill can be chosen) .
3.Dispersing reactor꞉ It's a jacketed stainless steel high shear reactor, with low speed mixer and high shearing machine on it. Normally the mixer speed is 35rpm, shearing speed is 0~2900rpm.
4.Adjusting kettle꞉ It's a jacketed stainless steel high shear reactor, with low speed mixer and high shearing machine on it. Normally the mixer speed is 50rpm, shearing speed is 0~1450rpm.
5.Filter꞉ bag filter, SS material.
1.Material measure system(material tank ,feeding
engine,weighing unit,dust removing system, detecting
system).
2.Vacuum
system(vacuum
pump,vacuum
buffer)
3.Compressed air system(air compressor, pressure release
valve)
4.Water
treatment
system(automatic
water
treatment)
5.Automatic
control
system
(PLC
control,
HMI
interface
etc.)
6.Pipeline
system(pipe, pump, valve, flange,
joint
etc)
7.Cooling
water
system
